Table 6. Basic Models (continued)

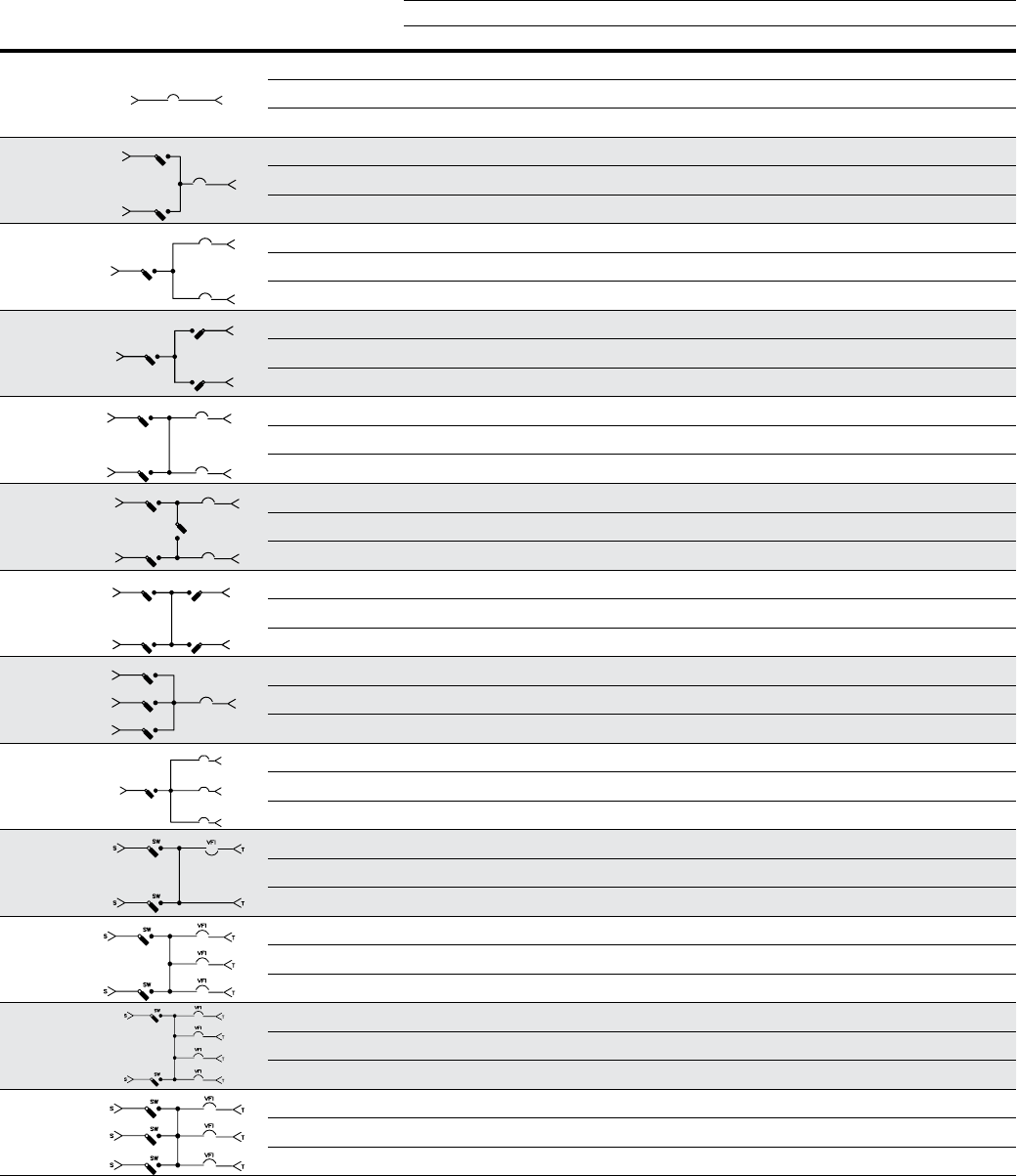

Model* One-Line Diagram**
Nominal Voltage
(kV)
SINGLE-SIDED, COMPACT
1
FRONT ACCESS
OIL INSULATED E200 INSULATED† SF
6
INSULATED
Descriptor Descriptor Descriptor
5
15 KPSO-VF5-32 KPSE-VF5-32 KPSS-VF5-32
25 KPSO-VF5-35 KPSE-VF5-35 KPSS-VF5-35
35 KPSO-VF5-38 KPSE-VF5-38 KPSS-VF5-38
6
15 KPSO-VF6-32 KPSE-VF6-32 KPSS-VF6-32
25 KPSO-VF6-35 KPSE-VF6-35 KPSS-VF6-35
35 KPSO-VF6-38 KPSE-VF6-38 KPSS-VF6-38
7
15 KPSO-VF7-32 KPSF-VF7-32 KPSS-VF7-32
25 KPSO-VF7-35 KPSE-VF7-35 KPSS-VF7-35
35 KPSO-VF7-38 KPSE-VF7-38 KPSS-VF7-38
13A ‡
15 KPSO-RV13A-32 KPSE-RV13A-32 KPSS-RV13A-32
25 KPSO-RV13A-35 KPSE-RV13A-35 KPSS-RV13A-35
35 KPSO-RV13A-38 KPSE-RV13A-38 KPSS-RV13A-38
9
15 KPSO-VF9-32 KPSE-VF9-32 KPSS-VF9-32
25 KPSO-VF9-35 KPSE-VF9-35 KPSS-VF9-35
35 KPSO-VF9-38 KPSE-VF9-38 KPSS-VF9-38
9T
15 KPSO-VF9T-32 KPSE-VF9T-32 KPSS-VF9T-32
25 KPSO-VF9T-35 KPSE-VF9T-35 KPSS-VF9T-35
35 KPSO-VF9T-38 KPSE-VF9T-38 KPSS-VF9T-38
10 ‡
15 KPSO-RV10-32 KPSE-RV10-32 KPSS-RV10-32
25 KPSO-RV10-35 KPSE-RV10-35 KPSS-RV10-35
35 KPSO-RV10-38 KPSE-RV10-38 KPSS-RV10-38
11
15 KPSO-VFT11-32 KPSE-VF11-32 KPSS-VF11-32
25 KPSO-VFT11-35 KPSE-VF11-35 KPSS-VF11-35
35 KPSO-VFT11-38 KPSE-VF11-38 KPSS-VF11-38
12
15 KPSO-VF12-32 KPSE-VF12-32 KPSS-VF12-32
25 KPSO-VF12-35 KPSE-VF12-35 KPSS-VF12-35
35 KPSO-VF12-38 KPSE-VF12-38 KPSS-VF12-38
14
15 KPSO-VF14-32 KPSE-VF14-32 KPSS-VF14-32
25 KPSO-VF14-35 KPSE-VF14-35 KPSS-VF14-35
35 KPSO-VF14-38 KPSE-VF14-38 KPSS-VF14-38
5W2
15 KPSO-VF5W2-32 KPSE-VF5W2-32 KPSS-VF5W2-32
25 KPSO-VF5W2-35 KPSE-VF5W2-35 KPSS-VF5W2-35
35 KPSO-VF5W2-38 KPSE-VF5W2-38 KPSS-VF5W2-38
6W2
15 KPSO-VF6W2-32 KPSE-VF6W2-32 KPSS-VF6W2-32
25 KPSO-VF6W2-35 KPSE-VF6W2-35 KPSS-VF6W2-35
35 KPSO-VF6W2-38 KPSE-VF6W2-38 KPSS-VF6W2-38
6W3
15 KPSO-VF6W3-32 KPSE-VF6W3-32 KPSS-VF6W3-32
25 KPSO-VF6W3-35 KPSE-VF6W3-35 KPSS-VF6W3-35
35 KPSO-VF6W3-38 KPSE-VF6W3-38 KPSS-VF6W3-38
VFI
T
S
S
SW
SW
S
SW
VFI
T
VFI
T
S
SW
S
SW
SW
T
SW
SW
T
S
SW
VFI
T
S
SW
S
SW
T
S
SW
VFI
T
VFI
T
VFI
T
S
SW
S
SW
S
SW
T
SW
SW
T
S
SW
T
S
SW
VFI
T
VFI
* Other models are available. Consult Factory.
** One-Line Diagram depicts the electrical connectivity, not the physical arrangement. Standard "source" and "tap" designation indicated by "S" and "T" on one-line diagrams.
1 Compact units are designed with bushings in a diagonal fashion. Models 5, 6, 7, 13A, 9, 10, 11, 12, and 14 can be designed single-sided with in-line bushings. Consult Factory.
‡ RVAC Models
† Envirotemp™ FR3™ fluid insulation is available. Consult Factory.
13
Technical Data 285-10
Effective April 2014
VFI underground distribution switchgear
www.cooperpower.com
